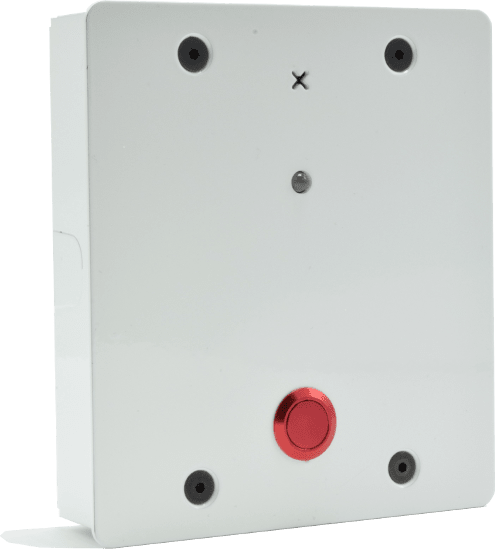

IP Panic Button with Mic

Wahsega’s IP Panic Button with Microphone is a surface mounted, low profile IP intercom built for placing calls in emergency situations. This device does not include a speaker.

Price: $320

Carina Model Number WL-PBM-CAR-W-R

IP Panic Button

With its low profile, the Wahsega IP Panic button with microphone can be installed under a desk or other discrete location. Users can place an emergency SIP call to a preconfigured phone number, and the answering party can listen in to assess the situation.

Perfect for use in schools and universities, banks, medical facilities and multi-tenant office buildings, the Wahsega IP Panic Button has an integrated microphone for high-quality SIP audio. Each unit is powered via Power-over-Ethernet (PoE), using just one cable for both communication and power.

Programming the SIP-Enabled IP Panic Button is simple, and LED feedback lets installers know when their system is up and running. The Wahsega IP Panic Button can be managed by the Carina Event Manager or Event Manager Lite.

Highlights:

  • Simple surface mount
  • Two-way VoIP endpoint
  • Integrated microphone
  • Supports Carina and SIP

Safety Certification Seals

The Wahsega IP Panic Button is a surface-mounted SIP intercom with integrated microphone. With no integrated speaker, it is built for silent calls to a preconfigured number during emergency situations.

The IP Panic Button supports the SIP protocol so it can register with the Wahsega PBX, PBX Lite or any IP PBX for easy integration with your existing phone system. The best way to manage this device is through the Carina Event Manager or Event Manager Lite.

With simple installation and programming, advanced functionality and reduced labor and installation costs, the Wahsega SIP-Enabled IP Panic Button is the perfect solution for a wide range of applications.

Features:

  • Fully configurable via Carina Event Manager
  • POE 802.3af enabled
  • SIP Compliant
  • Peer-to-peer SIP capable
  • Environmental noise suppression
  • Web-based volume control
  • LED indicator light
  • Ethernet: 10/100 Mbps (Can force 10Mbps full-duplex)
  • Power Input: PoE 802.3af
  • Protocol: SIP RFC 3261 compatible
  • Temperature Range: -40°C to +60°C
  • Audio Codecs: G.711 uLaw, G.711 aLaw, G.722 HD, G.726 fixed payload, G.729, DVI4 HD, DVI4 Narrowband, OPUS
  • Audio Sampling: Up to 48KHz
  • Form C (SPDT) Relay Contact Closure Rating: 24VAC 30VDC, 2A
  • Dimensions: 4.87″ x 4.35″ x 1.18″ (H x W x D)
  • Warranty: 3 years limited
  • Regulatory Compliance: FCC Class B
  • Max PoE Cable Length: 100m (per standard) PoE 10/100 cable length

Carina Documentation:

Legacy Documentation:
