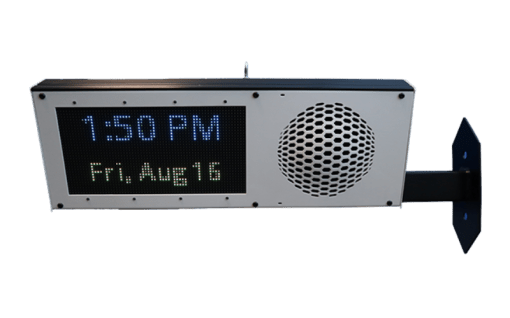

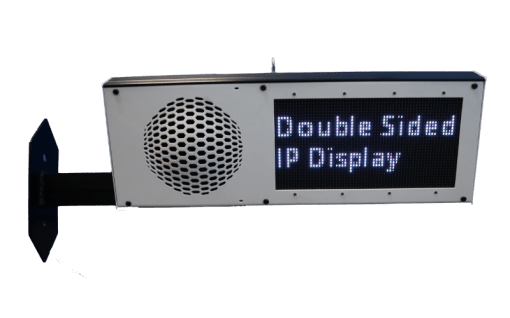

Double Sided Wall Mount IP Display
Wahsega’s Double Sided Wall Mount IP display is perfect for hallways where text and audio broadcasts must be received in both directions. In addition to displaying the synchronized time and date, the IP display can display custom scrolling text, has built-in flashers to get people’s attention, crystal clear audio, a condenser microphone and the ability to act as a help station so people can place calls when there is an emergency.
Carina Price: $1,499
Carina Model Number WL-IPD-SPKR-510D-CAR
InformaCast Price: $1,619
InformaCast Model Number WL-IPD-SPKR-510D-INF
Wall Mount Double Sided IP Display Features
The Wahsega Double Sided Wall Mount IP Display is the perfect tool to get the message out to everyone in your buildings especially when they are traveling between rooms or in very large spaces. With an LED display on each side as well as two speakers, your message will get everyone’s attention and make sure the information is easily digestible during an emergency.
The Double Sided Wall Mount IP Display also acts as a help station where people can push a button to call for help and have a hands-free conversation. In larger hallways and rooms, an Extension Speaker can be connected to the Double Sided Wall Mount IP Display to extend the audio coverage of the announcement.
The Double Sided Wall Mount IP Display can be managed by the Carina Event Manager, Event Manager Lite or InformaCast.
Highlights:
- 2 – 5”H x 10”W LED multicolor displays
- 2 – High quality speakers
- Supports up to 256 characters
- HD audio / microphone
- Panic/Call button support
- Built-in multicolor flashers
- Automatic time synchronization
- Simple wall mount kit included
- Supports Carina or InformaCast
Wahsega’s Double Sided Wall Mount IP Display provides continuous time and date display and also receives critical textual information to be scrolled on two displays on either side of the unit. The Wahsega Double Sided Wall Mount IP Display has two opposing LED displays and supports over 32,000 colors with an LED resolution that is twice what competing products provide, allowing more information to be displayed at one time. All text is rendered using vector fonts, which provide improved readability. With network connectivity, scrolling LED display, built-in speaker and multi-color flashers, the Wahsega Double Sided Wall Mount IP Display broadcasts both audible and visible messages to hallways, offices and large spaces. Two integrated relays let building managers remotely control external devices. A built-in microphone enables two-way SIP communication, and time synchronization is handled by a network SNTP Server. The Wahsega Double Sided Wall Mount IP Display can even power an Extension Speaker up to 20 meters away via an Ethernet cable, providing increased audio coverage in a large space.
The Double Sided Wall Mount IP Display supports the SIP protocol so it can register with the Carina PBX, Carina PBX Lite or any IP PBX for easy integration with your existing phone system. The best way to manage this device is through the Carina Event Manager, Event Manager Lite or InformaCast.
Powered via Power-over-Ethernet (PoE), the Double Sided Wall Mount IP Display works with the Wahsega Panic/Call Button or standard panic buttons to trigger an outbound SIP call. This provides a low-cost option for panic buttons in hallways where the Double Sided Wall Mount IP Display is installed. With Wahsega’s advanced panic button functionality, a brief button press places a call to one preconfigured number—such as the front office—while a longer press-and-hold calls a second, preconfigured panic number. This feature significantly reduces false alarm panic calls.
With simple installation and programming, advanced functionality and reduced labor and installation costs, the Wahsega POE Double Sided Wall Mount IP Display is the perfect solution for a wide range of applications.
Features:
- Supports Carina or InformaCast
- PoE 802.3af enabled
- Able to drive second Wahsega analog speaker up to 20m away via Cat5e or Cat6
- Fully Configurable via Carina or InformaCast
- Environmental noise suppression
- Amplify classroom audio with compatible sound reinforcement panel
- Simple Surface mount installation
- Built-in microphone for two-way communication
- Integrated status LED
- Two On-board relays for door control
- Text display up to 5” high
- RJ45 connections for simplified installation of second speaker
- Compatible with standard panic buttons
- Scrolling text display for longer messages
- Time set by network SNTP Server with no manual adjustments necessary
- Receive bell and event schedule alerts
- Display 12- or 24-hour clock with four or six numerals
- Auto-dim LED feature for energy reduction
- Industry-leading low standby power
- 32 x 64 LED resolution
- Double sided displays
- Multicast support for background music
- Wall mount earthquake support features
- Scrolling text display for longer messages
- Ethernet: 10/100 Mbps
- Power Input: PoE (Power-over-Ethernet) 802.3af
- Standby power: < 2 Watt
- Protocol: SIP RFC 3261 compatible
- Audio Codecs: G.711, G.726, G.722, G.729, DVI4 , Linear PCM, iLBC, Speex, SILK, Opus
- Audio Sampling: HD audio of 48Khz or 44.1kHz
- Speaker Drive Capabilities: 8W (5W per speaker when driving two speakers)
- Speaker Impedance: 8Ω
- Speaker Sensitivity: 96dB 1W/0.5M SPL
- Coverage Angle: 120° / 4 kHz
- Dry Contact Closures Rating: 2A min, 24VAC/30VDC
- Max PoE Cable Length: 100m (per standard) PoE 10/100 cable length
- Max Secondary Speaker Cat5e or Cat6 Cable Length: 20m
- Temperature Range: -40°C to +60°C
- FCC Class A
- Weight: 13.25 lbs
- Overall Dimensions: 20.39” W x 7.1” H x 4.54” D
- LED Panel Dimensions: 5” tall x 10” wide
- Construction: Metal housing with polyester powdercoat paint
- Installation: Built-in side mount
- Warranty: 3 years limited
Carina Documentation:
InformaCast Documentation:
Legacy Carina Documentation:
Legacy InformaCast Documentation:
- Data Sheet
- Users Guide
- Installation Guide
- Application Notes – Integration with CUCM “Call Manager”
- Application Notes – Advanced Configuration with XML
